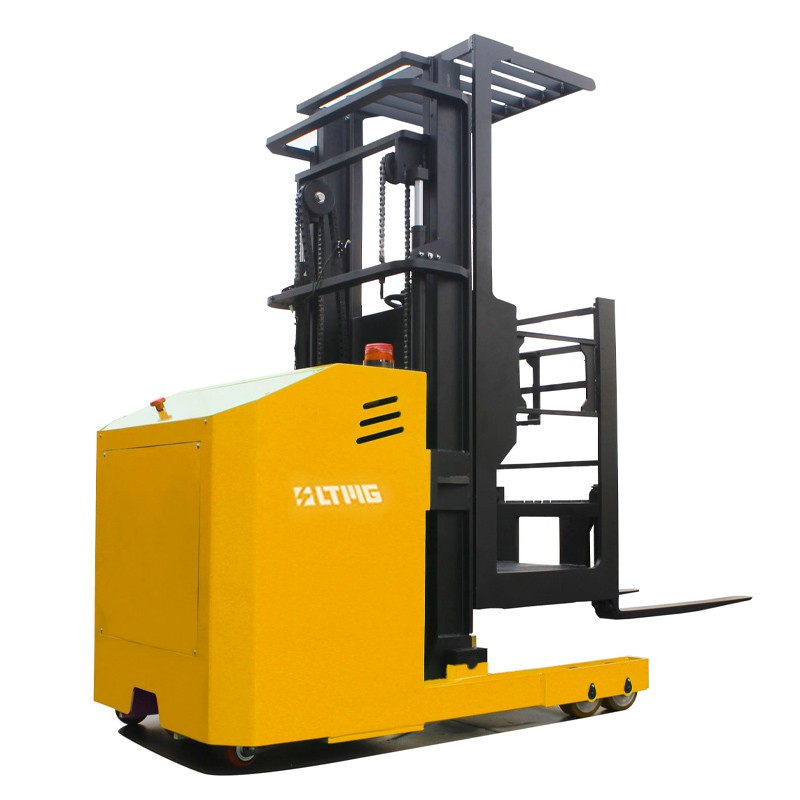

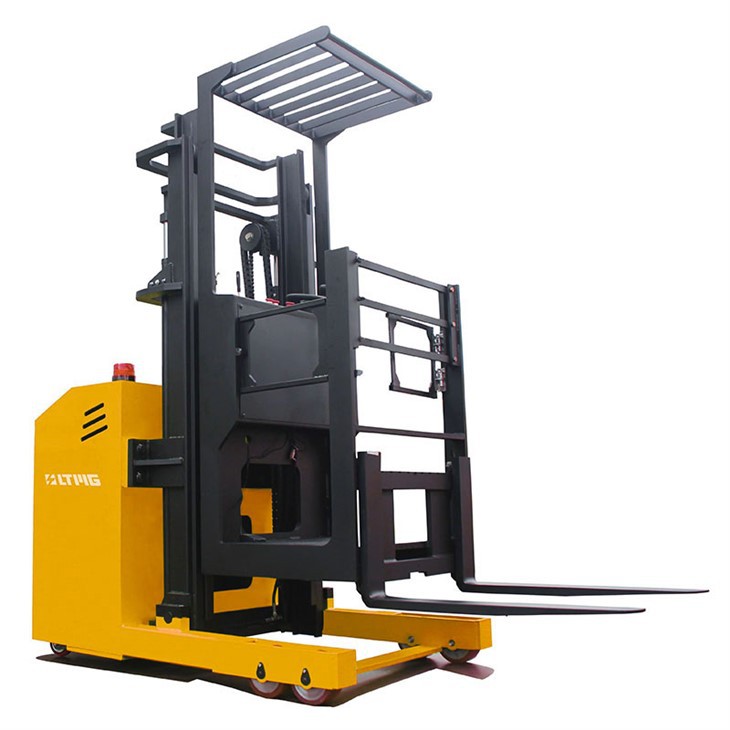

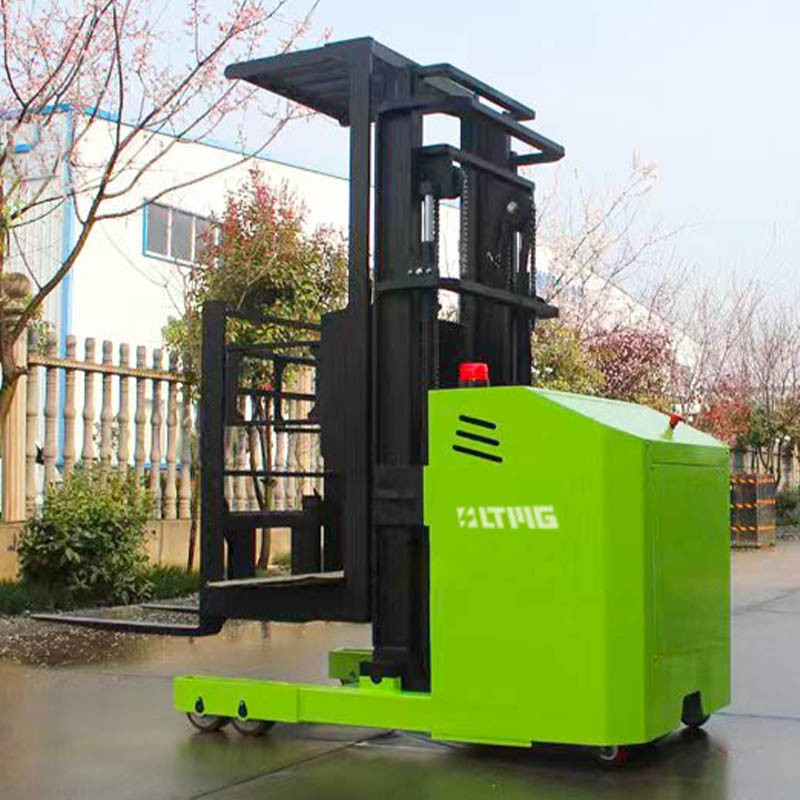

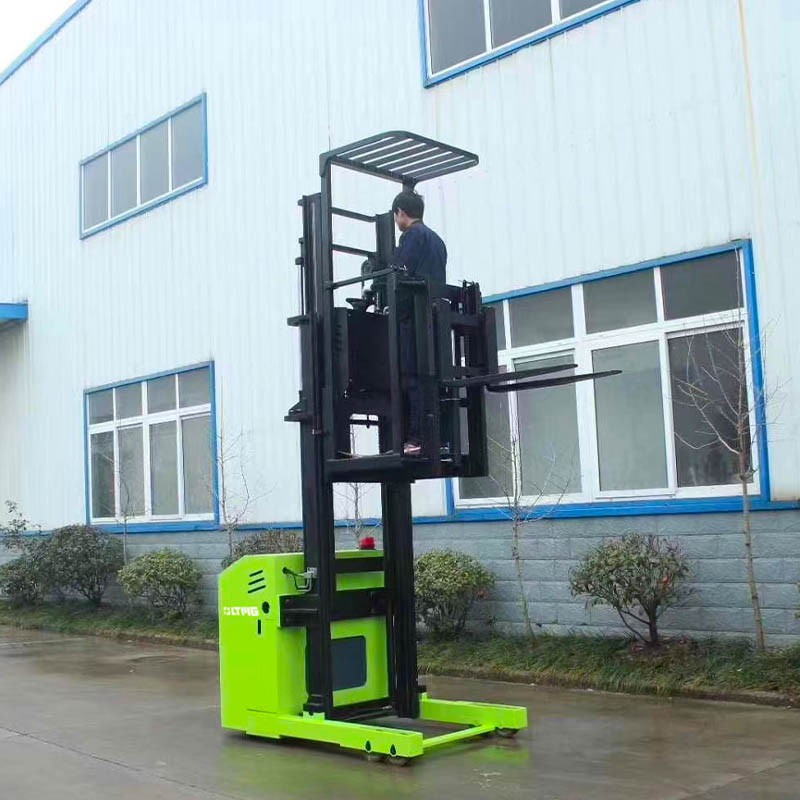

Warehouse Narrow Aisle Order Picker

Items:Electric Order Picker Lift For Warehouse
Power type: Electric
Rated capacity: 15000 kg
Color:customized
Send Inquiry
Chat Now

Product Introduction

Our Electric Order Picker is the ideal solution for efficient and safe order picking tasks. With its advanced human-machine interface function, you can ensure that the operation is always in optimal condition. This order picker can reach up to 11 meters, making it easier and faster to pick orders. Even for tough and challenging tasks, our order picker guarantees safety and efficiency in driving.


The adjustable steering device, PIN activation, and individual driving program help to improve work quality, ensuring a more comfortable driving experience from low to high speeds. The vertical and horizontal pickers have proven their value in difficult applications. With a short battery replacement time, the electric order picker can even work for multiple shifts continuously.


Our Electric Order Picker is suitable for a variety of applications, including warehouses, factories, and distribution centers. It helps to optimize the work process, reduce labor costs, and increase productivity. The picker's compact design makes it easy to maneuver in narrow aisles, reducing the risk of collisions.


In addition to its advanced features, the Electric Order Picker is also highly customizable and adaptable to meet different needs and preferences. Whether you need to pick small items or large goods, our order picker has got you covered. Its excellent stability and control system ensure that you can work confidently and efficiently, even in challenging and demanding applications.


Overall, our Electric Order Picker is the perfect tool for boosting your order picking efficiency, improving work quality, and enhancing your overall business performance. With its advanced features and high adaptability, it's a smart investment for any business looking to streamline their logistics and optimize their operations.

narrow aisle order picker

order picker lift

picker forklift


Technical parameters



Model ERP15
Capacity Q(kg) 1500
Load center C(mm) 500
Wheelbase Y(mm) 1845
Total weight including the battery kg 3000
Wheel front 0 x w(mm) 180*70
Driving Wheel 0 x w(mm) 382*142
Balance wheel 0 x w(mm) /
Wheel tread:Front b10(mm) 1160
Wheel tread:Rear /
Max Lifting Height h3(mm) 4500
Max.height h4(mm) 6670
Overhead guard height h14(mm) 2120
Overall length I2(mm) 2500
Overall width b1(mm) 1300
Fork dimension s/e/l(mm) 40/122/920
Fork spread b5(mm) 210-770
Min ground clearance m2(mm) 60
Turning radius Wa(mm) 2140
Max travel speed(No load /Full) km/h 5/3
Max.Grade ability(No load /Full) % 10/6
Brake form

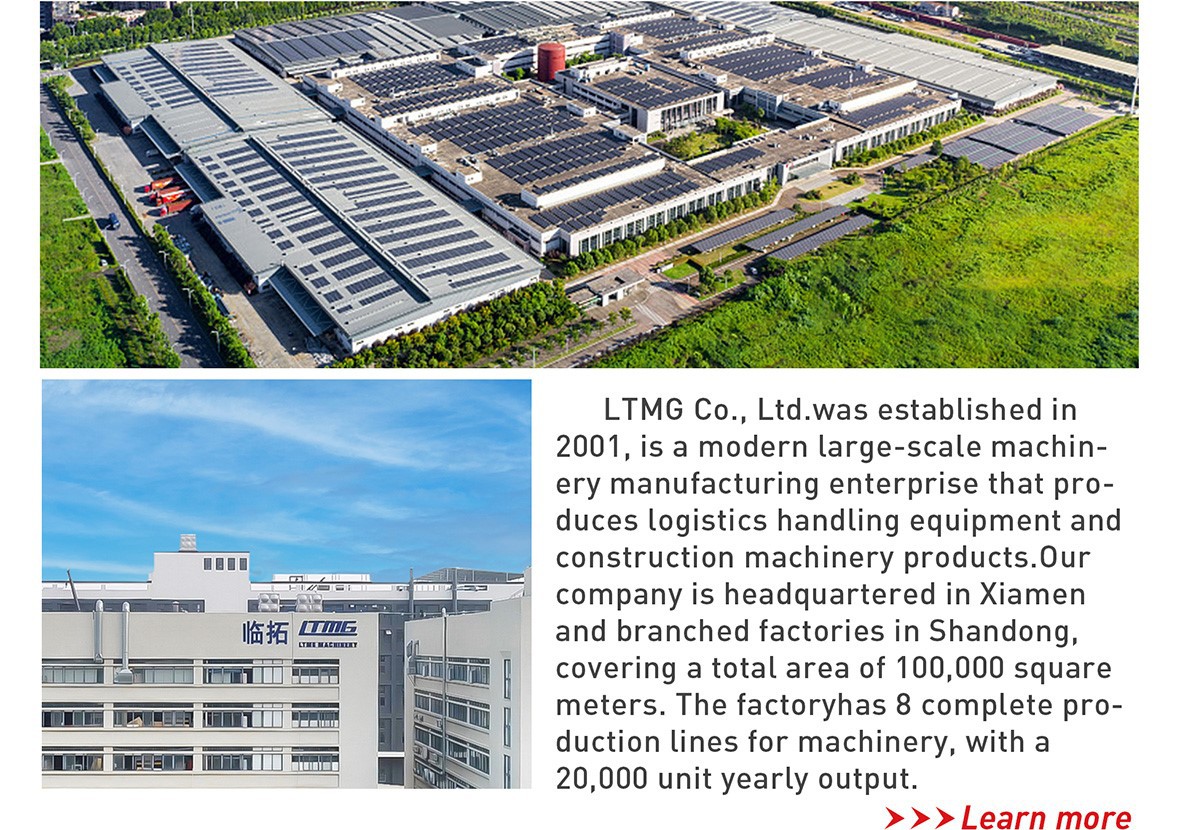

About LTMG



about order picker lift factory

Client comment



narrow aisle order picker comment

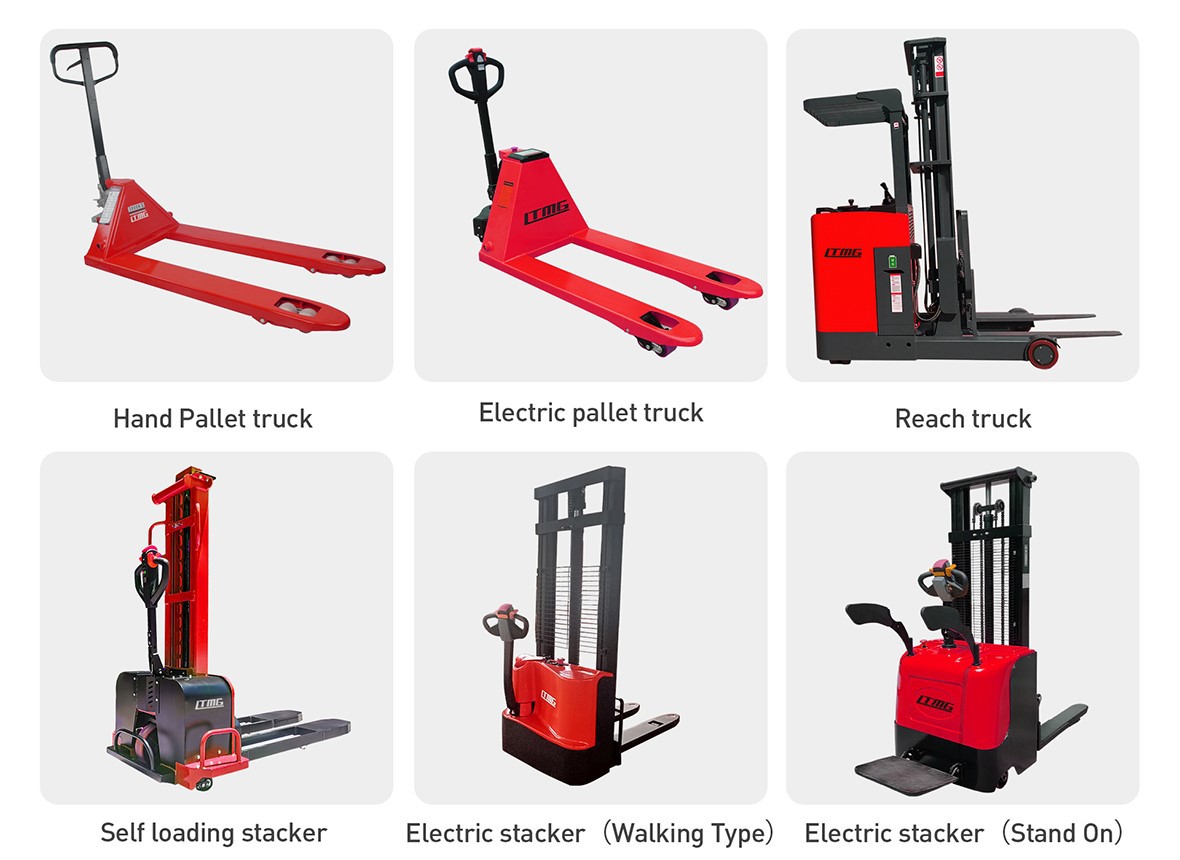

recommend product



picker forklift stacker





FAQ

Q: What are the benefits of using the Electric Order Picker?

A:The Electric Order Picker has several benefits including advanced human-machine interface function, adjustable steering device, PIN activation, and individual driving program. It also guarantees safety and efficiency in driving, has a short battery replacement time and is suitable for a variety of applications.

Q: What kind of tasks is the Electric Order Picker suitable for?

A: The Electric Order Picker is suitable for a variety of tasks such as those found in warehouses, factories, and distribution centers.

Q: How does the Electric Order Picker help with work optimization?

A: The Electric Order Picker helps to optimize work processes, reduce labor costs, and increase productivity.
