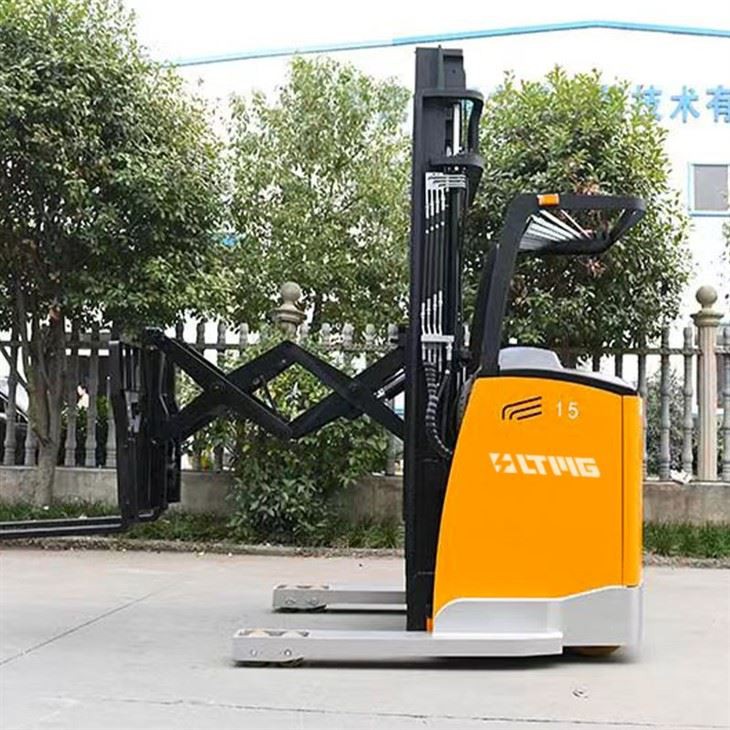

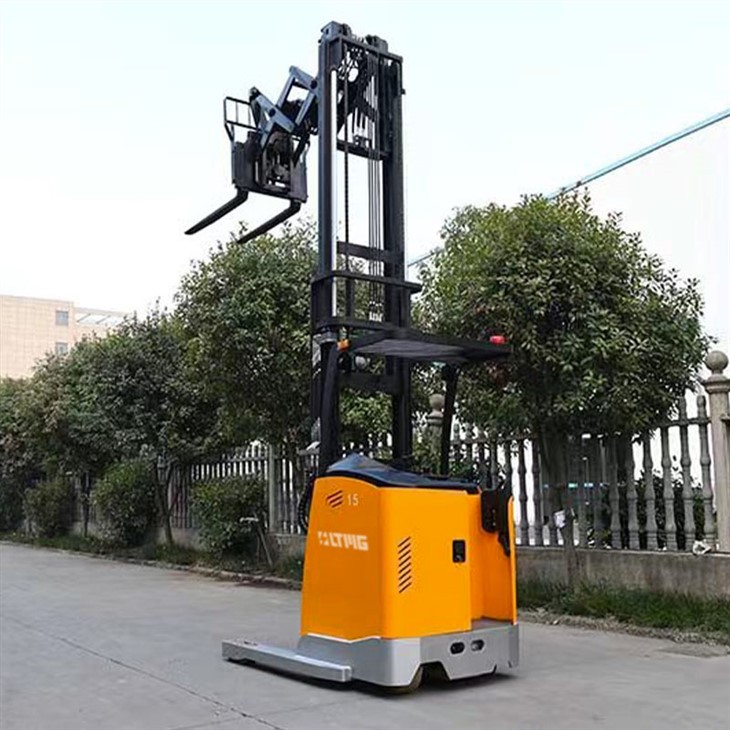

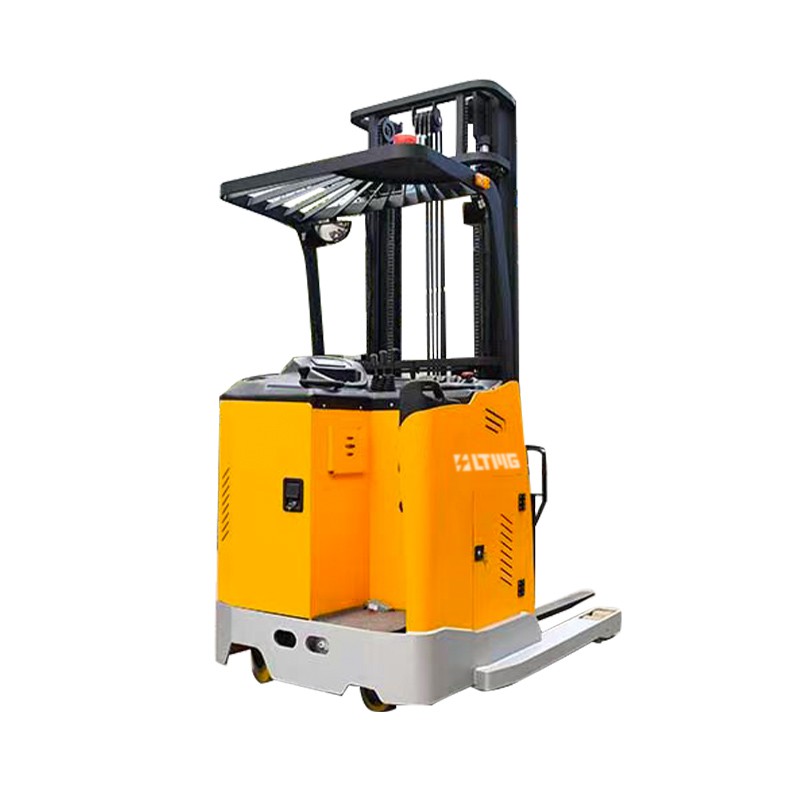

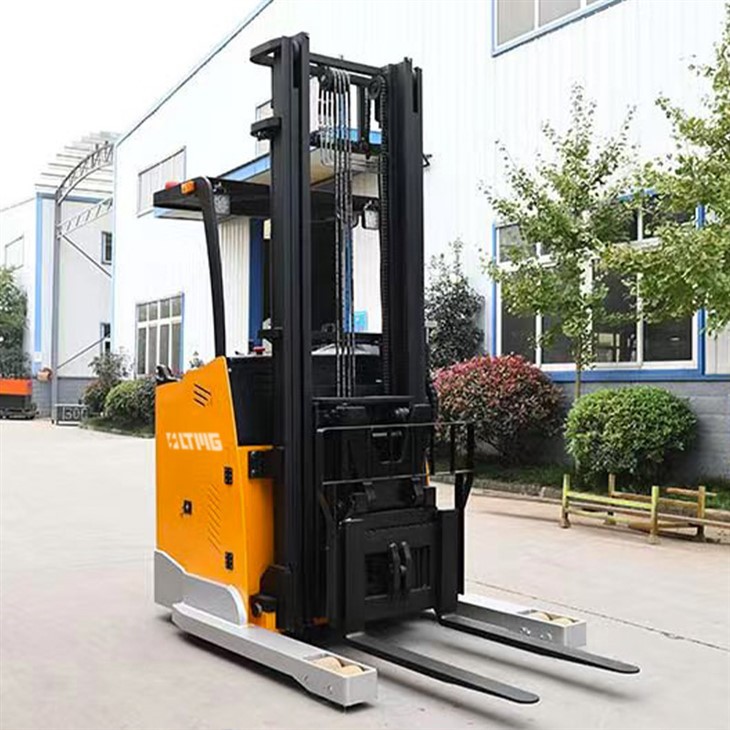

Electric reach forklift has large and comfortable compartment with adjustable seat. Use double controllers to realize stepless speed regulation of both lifting and travelling. It has safety travelling speed limited device in the mast. Full hydraulic steering system makes turning easy and flexible. Adopts hydraulic brake for two front wheel and electric brake for electric brake for driving motor. Integrated design of driving and steering system without chain transmission.
LTMG’s electric reach forklift delivers on efficiency and performance like never before. This reach truck comes with unique features coupled with the longstanding productivity, ergonomics, and low cost of ownership you expect from LTMG. The LTMG Reach Truck provides optimal visibility when reaching a second-level pallet position. The open view mast utilizes a 4-cylinder design to maximize forward visibility. Rigid mast construction helps minimize mast sway for precise load handling at maximum lift heights. This reach truck enables you to reach higher, work smarter, and be comfortably productive whether you’re moving from dock-to-stock, stock-to-dock, or anywhere in between.
Specification
|
Model |
|
FRB20 |
|
Power Type |
|
electric |
|
Operation type |
|
stand type |
|
Capacity |
Q(kg) |
1500 |
|
Load center |
C(mm) |
500 |
|
Front overhang |
X(mm) |
173 |
|
Wheelbase |
Y(mm) |
1435 |
|
Reach distance |
I4(mm) |
600 |
|
weight |
kg |
1900 |
|
Wheel type |
|
PU solid tire |
|
Driving Wheel |
Ø x w(mm) |
230*75 |
|
front wheel |
Ø x w(mm) |
210*85 |
|
Rear wheel |
Ø x w(mm) |
150*50 |
|
Wheel tread:Front |
b10(mm) |
735 |
|
Wheel tread:Rear |
b11(mm) |
955 |
|
fork lowering |
|
1840 |
|
Max Lifting Height |
h3(mm) |
2500 |
|
Max.height |
h4(mm) |
3416 |
|
Fork height when gantry retracted |
h13(mm) |
35 |
|
Mast/carriage tilt angle(front/rear) |
0 |
3/5 |
|
Overall height（with forks) Overall length (without fork) |
I2(mm) |
1834/2276 |
|
Overall width |
b1(mm) |
1034 |
|
Fork dimension |
s/e/l(mm) |
35/100/1070 |
|
Fork spread |
b5(mm) |
210-680 |
|
Min ground clearance |
m2(mm) |
70 |
|
Min.stacking.aisle.1000*1200pall |
Ast(mm) |
2715 |
|
Min.stacking.aisle.1000*1200pall |
Ast(mm) |
3116 |
|
Turning radius |
Wa(mm) |
1752/2153 |
|
Max travel speed)(No load /Full) |
km/h |
5/4 |
|
Lifting speed (No load /Full) |
m/s |
0.112/0.092 |
|
Lowered speed (No load /Full) |
m/s |
0.094/0.115 |
|
Max.Grade ability No load /Full |
% |
8/5 |
|
Brake form |
|
Electromagnetic braking |
|
Driving motor |
kw |
2 |
|
Lifting motor |
kw |
2.2DC |
|
Battery type |
|
Lead acid battery |
|
Battery capacity |
V/Ah |
24/210 |
|
Charger-Intelligent |
V/A |
24/30 |
|
Drive control mode |
|
AC |
|
Driver's ear noise level according to EN12053 |
dB(A) |
75 |
Shipmen
Our company

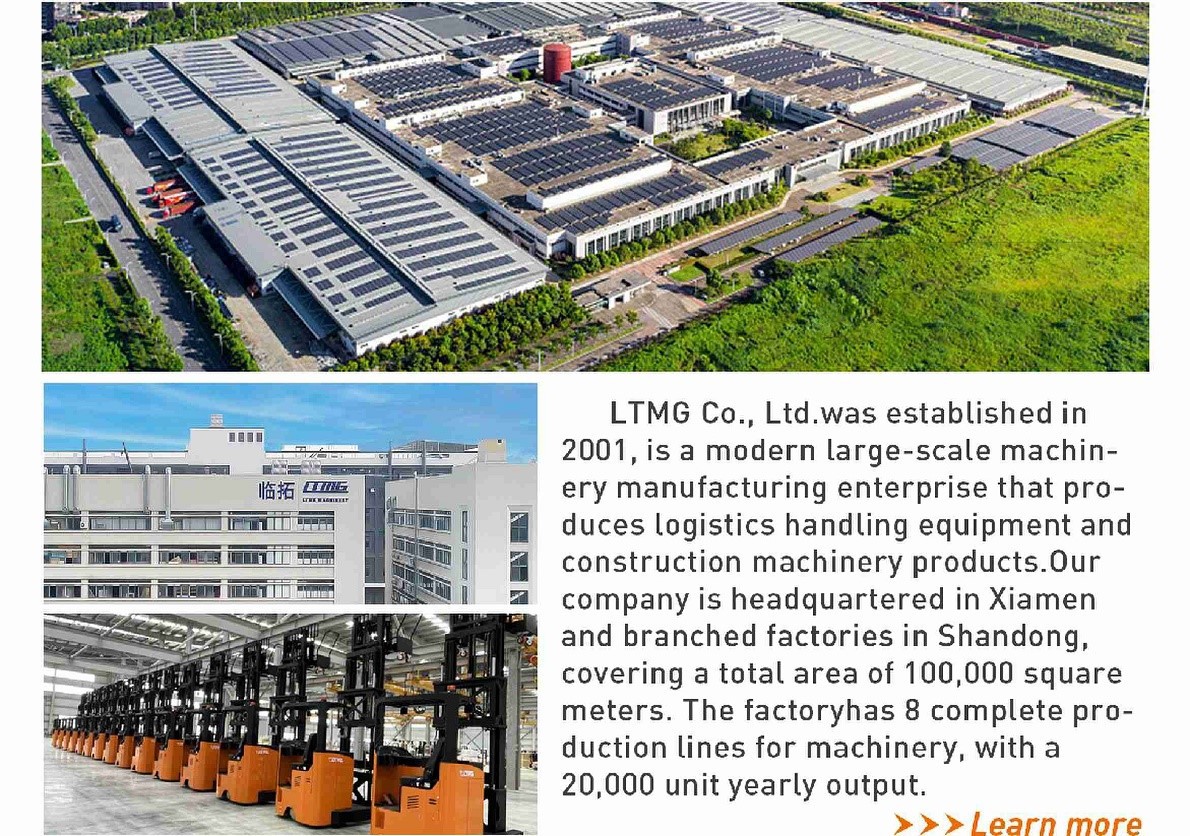

Since its establishment in 2001, LTMG Xiamen Co., Ltd. has grown into a mature large-scale machinery manufacturing enterprise after more than 20 years of development. With the head office situated in Xiamen and the subsidiary factory situated in Shandong, the company has an area of 100,000 square meters and is mainly engaged in the production of logistics handling equipment and construction machinery products. With 8 complete machinery production lines and an annual production capacity of 20,000 units, LTMG is the mainstay of the industry.
Currently, LTMG Machinery Group (LTMG) operates in more than 180 countries and has achieved exceptional results in terms of market share, brand influence, trade volume growth rate, service quality, and customer base expansion. With a global network encompassing over 50 exclusive distributors, LTMG's products continue to receive high praise and recognition from satisfied customers both domestically and internationally.
FAQ
1. Why Choose Us?
LTMG is a well established professional manufacturer in the material handling industry for more than 20 years. As a stalwart of the industry, we have been committed to providing professional solutions for our customers. Currently, LTMG's products have been recognized in the market of more than 180 countries and highly applauded by our clients.
2. Can you give me a rundown of the products your company handles?
LTMG Industries specializes in crafting top-quality material handling and construction machinery equipment, such as forklifts, storage equipment, loaders, excavators, and even airport equipment.
3. Can you provide OEM or OEM service?
If you're looking for personalized products, LTMG can help with our customizable options - both OEM and ODM.
4. What Certificates do you have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
5. Could you share with us your accepted payment methods and delivery time frame?
Sure, we accept T/T, L/C, and D/P as payment methods, with a delivery time of 20-30 days after receiving the deposit.
