Product Parameters

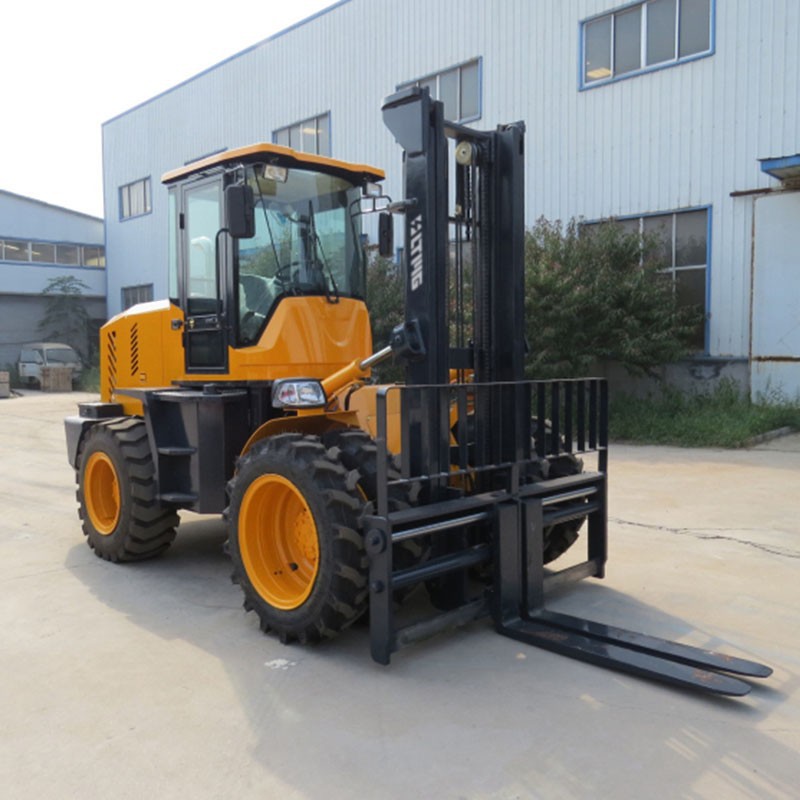

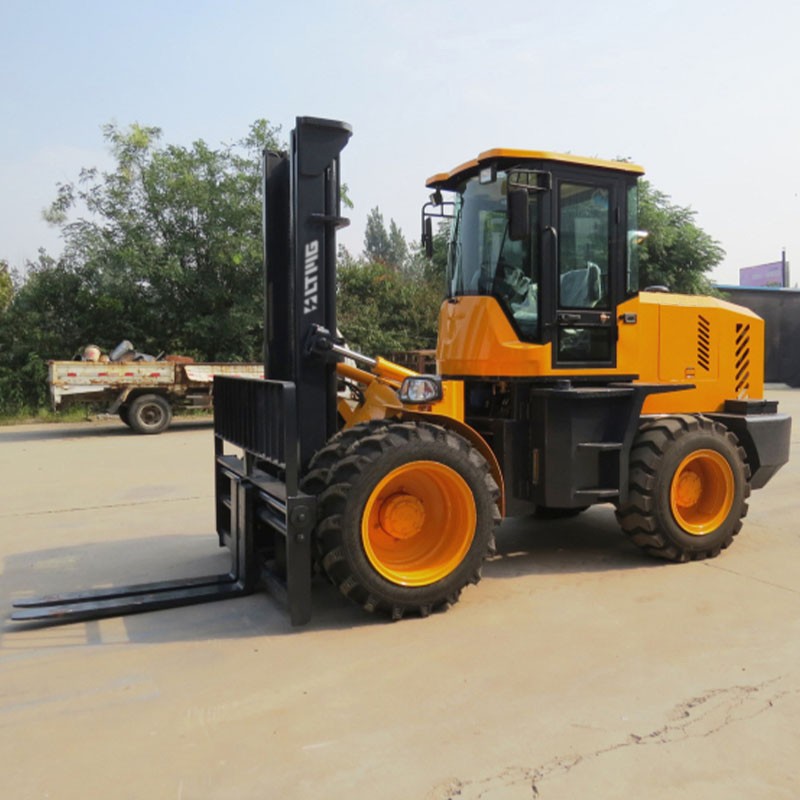

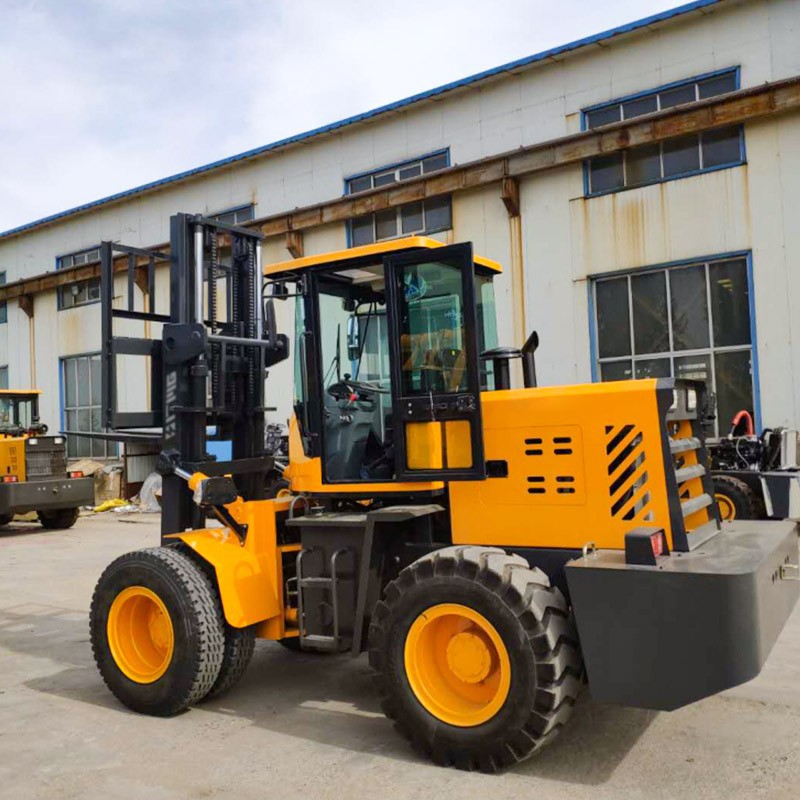

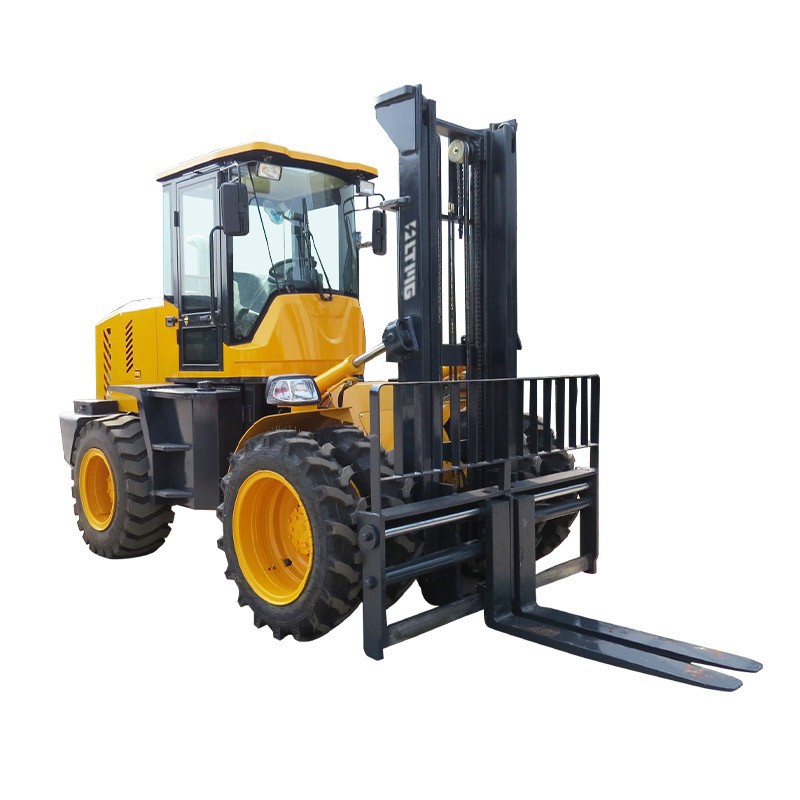

Thank you for your interest in our LTMG 7-ton rough terrain forklift. This model is designed to excel in challenging environments and rigorous work conditions.The following are our product related parameters.
| LTMG LTR70T Technical Parameters | |||
| Model | unit | LTR70T | |
| Product name | |||
| Rated load | Kg | 7000 | |
| Load center distance | mm | 600 | |
| Lifting height | mm | 4000 | |
| Gantry tilt angle (forward/backward tilt) | ° | (6)(12) | |
| Maximum travel speed | Km/h | 30 | |
| Full load grade | ﹪ | 20 | |
| Self weight | Kg | 9000 | |
| Track (front/rear) | mm | 1600 | |
| Wheelbase | mm | 2300 | |
| Tire | front | 4x10.0R20Steel wire tyre | |
| rear | 2x16/70-24 | ||
| Dimensions (length x width x height) | mm | 4500x2100x2800 | |
| Full load lifting speed | mm/s | 390 | |
| Minimum turning radius | mm | 4800 | |
| Minimum ground clearance | mm | 270 | |
| LTMG LTR70T basic configuration | |||
| engine | model | WP6G125E22 | |
| manufacturer | Weichai | ||
| Rated power/speed | Kw/r/min | 92/2200 | |
| Battery | Voltage | V | 24 |
| capacity | Ah | 100 | |
| Transmission | Hydraulic | ||
| Working system | Pilot operating system | ||
| Drive axle | Dedicated wheel side deceleration bridge | four-wheel drive | Pneumatic clamp brake |
| Cabin | cab with sound system,fan | ||

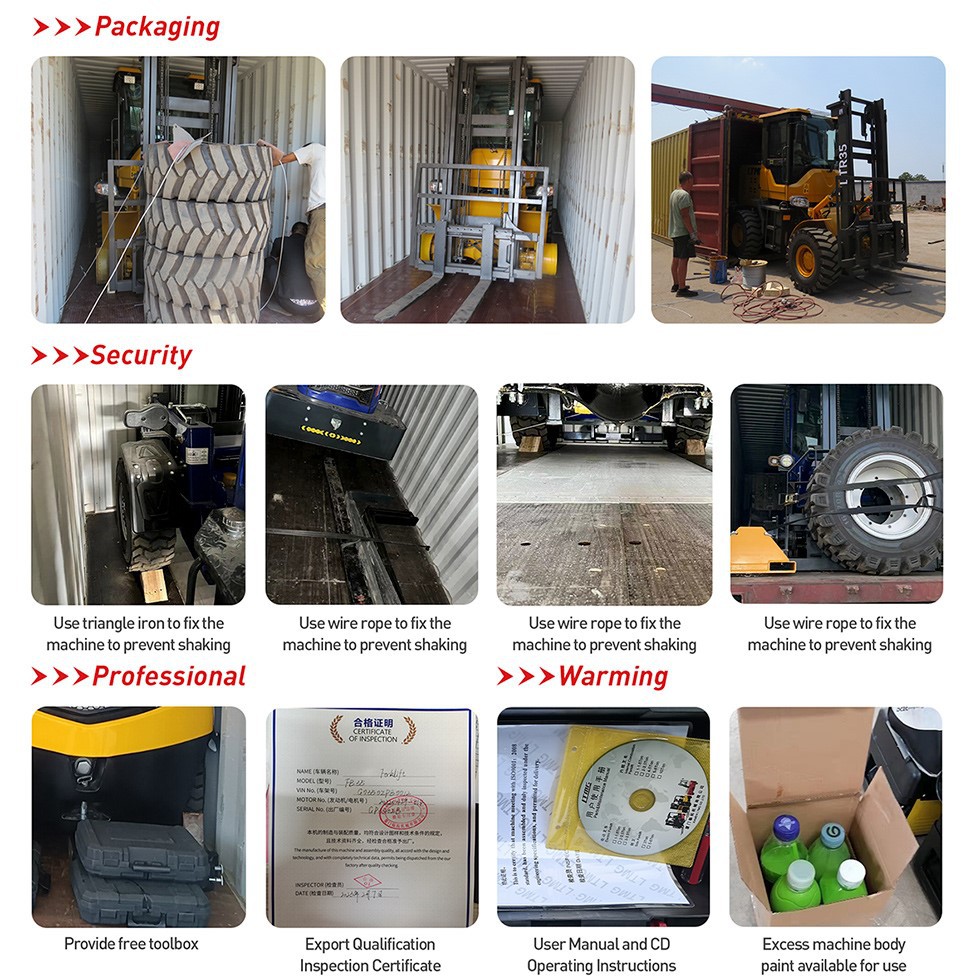

Packing and Shipping
Secure Fastening: Inside the crate, the forklift is securely fastened using straps or braces to prevent any shifting or tipping during transportation. This is particularly important for maintaining stability, especially when the forklift is being transported over rough or uneven terrain.
Protective Cushioning: To further protect the forklift from bumps and vibrations during transit, cushioning materials such as foam padding, bubble wrap, or corrugated cardboard may be used. These materials absorb shocks and provide additional insulation against impacts.

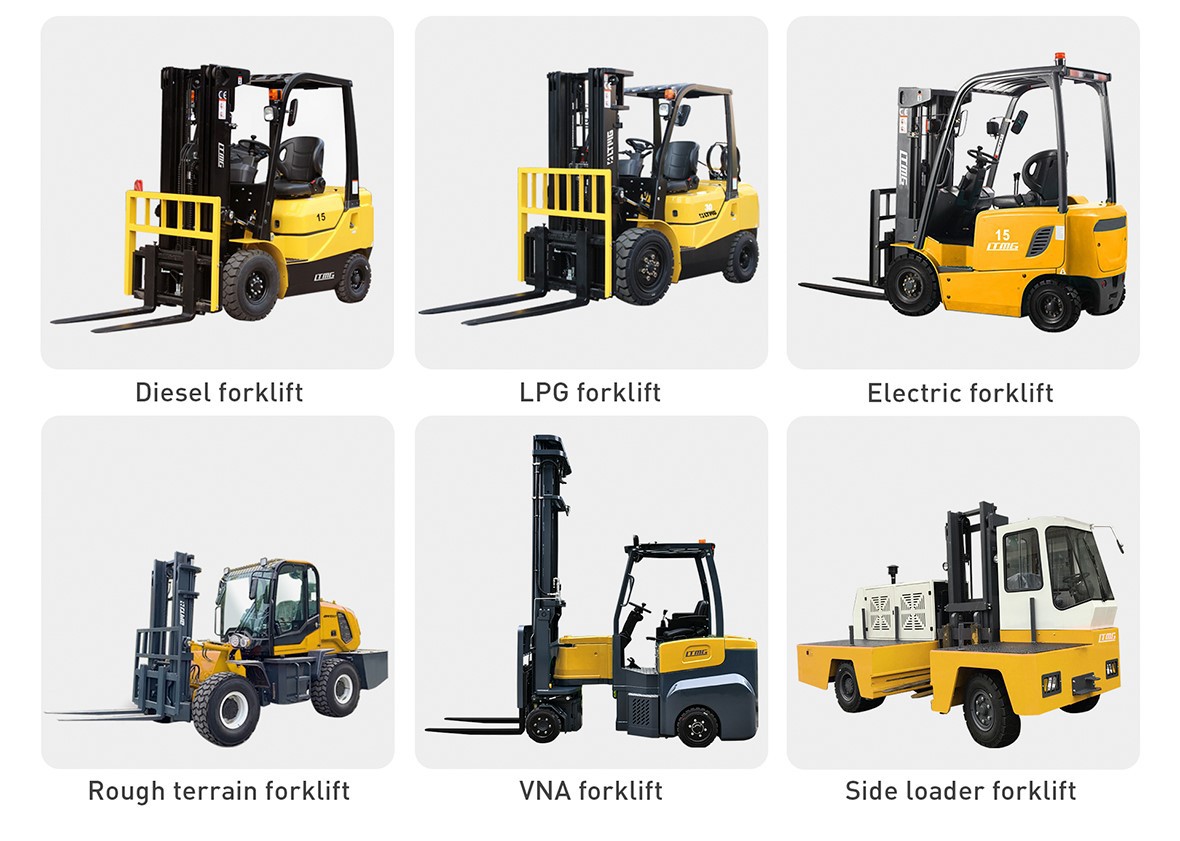

Available forklift models
Of course! In addition to off-road forklifts, our company also offers a variety of other types of forklift products to meet the needs of different industries and application scenarios. Here are some of our forklift product options:
Electric forklift:Suitable for indoor environments and places that require low-noise operation. High efficiency and energy saving, reduced emissions, suitable for long-term use.
Diesel forklift:Equipped with diesel or liquefied petroleum gas (LPG) engines, suitable for outdoor and large warehouse operations. Powerful and adaptable to various terrains and working conditions.
